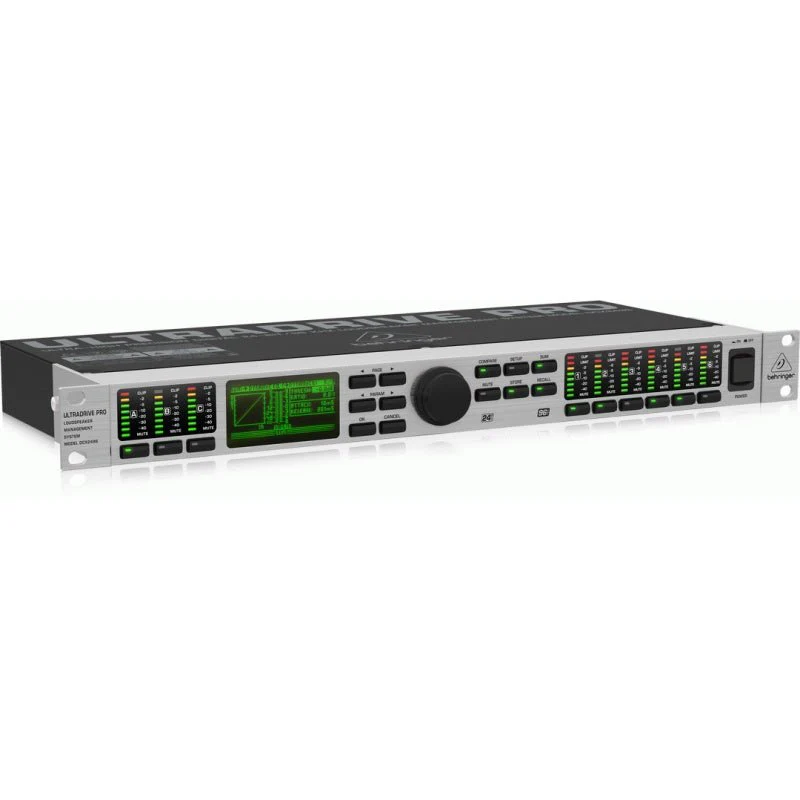

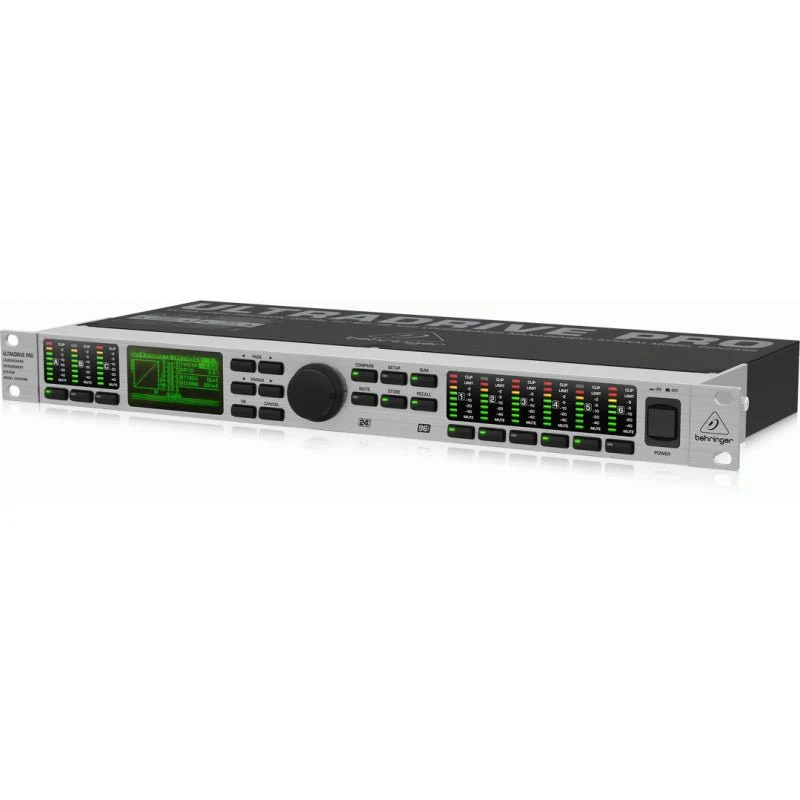

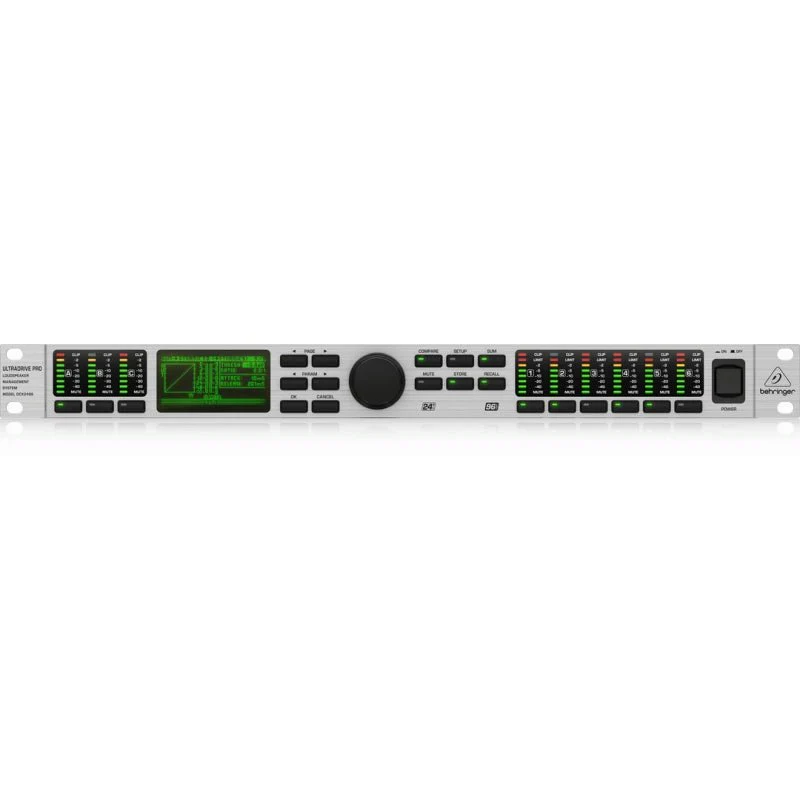

The ULTRADRIVE PRO DCX2496 is the answer to making your venue sound like it was tuned by the pros. Over the past years the DCX2496 has become an industry standard and several hundred thousand units have been employed in high-end touring as well as install applications. The DCX2496 is the perfect way to manage a multi-speaker sound system in any sized venue – from cinema to sanctuary to concert hall. Featuring 2 inputs, 6 outputs and 24-bit/96 kHz high-end AD/DA converters, this state-of-the-art processor will take your system to the next level and beyond.

Start with the DCX2496’s analog inputs (one suitable as a digital stereo AES/EBU input) and 6 analog outputs – you get maximum flexibility in just one rack space. Superb high-end Cirrus Logic* 24-bit/96 kHz A/D - D/A converters give you ultimate signal integrity – and an extremely-broad dynamic range of 120 dB!

3 analog inputs (one suitable as digital stereo AES/EBU input) and 6 analog outputs for maximum flexibility

High-end 96 kHz converters for ultimate signal integrity and wide dynamic range (120 dB)

Integrated sample rate converter for easy connection of external digital signals with sampling rates from 32 to 96 kHz

Precise Dynamic EQs for level-dependent equalization and extremely musical Parametric EQs, selectable for all inputs and outputs

Several types of EQs (LP/BP/HP) for each input and output

Zero-attack Limiters on all output channels for optimal speaker protection

Four different mono and stereo output operating modes

Individual crossover filter types (Butterworth, Bessel and Linkwitz-Riley) with selectable roll-off characteristics from 6 to 48 dB/octave

Adjustable Delays for all inputs and outputs—allow manual or automatic correction for room temperature, phase and arrival time differences

Additional Sum signal derived from the A/B/C inputs offers a fourth internal input signal

Free ULTRADRIVE PRO software enables total control via PC through RS-232 and RS-485 interfaces

Link option via RS-485 network interface enables cascading of several ULTRADRIVE PROs

60 user-defined internal presets storable

Servo-balanced, gold-plated XLR connectors for all inputs and outputs

Internal switch-mode power supply for maximum flexibility (100 - 240 V~), noise-free audio, superior transient response plus low power consumption for energy saving

Designed and engineered in Germany
